Palisade Description:
Powder coated Palisade Fencing, D Section Palisade Fence, W Section Palisade Fence also called SP fence,is made from S235JR and it increases the difficulty to go through buildings. Compared with general palisade fence,Kochfence has higher security and stability. Koch fence only involves 3.0 mm thick corrugated W" section and 3.9 mm thick corrugated "D"section, not refers to steel angle. Besides, the height of the fence can be 3.0 or 3.6 m above ground. SP fence often used to protect schools, parks, churches, stadiums, industrial sites, railways, highways, yards,premises, companies and so on.

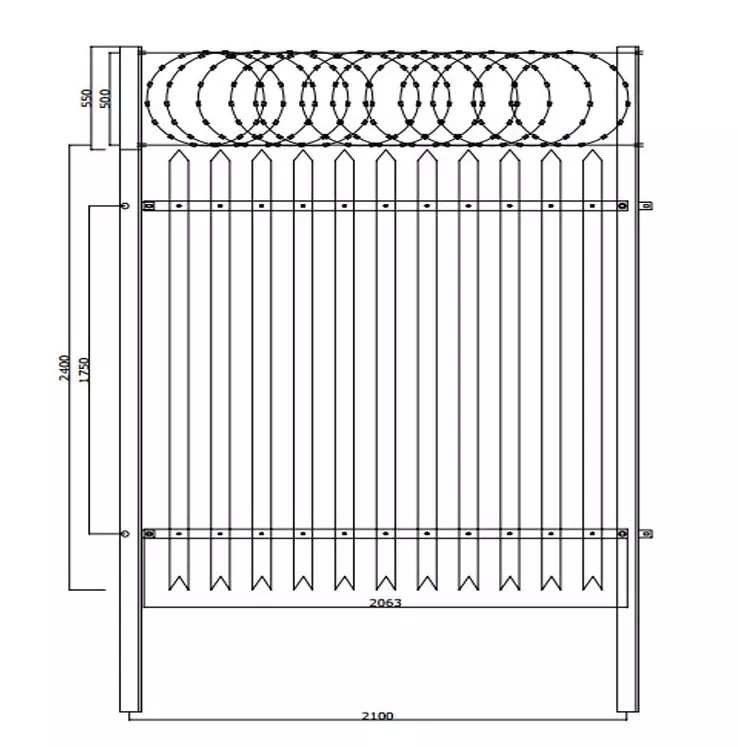

Palisade Specification:
| Height above ground | Suggested Pale Thickness (mm) | Posts | Post Height | Rails |
| Meter | "D"Section | "W"Section | | | |
| 1.8 | 3.0 | 2.0 to 3.0 | 100x50 | 2.325m | 45 x 45 x 6 |
| 2.0 | 3.0 | 2.0 to 3.0 | 100x50 | 2.725m | 45 x 45 x 6 |
| 2.1 | 3.0 | 2.0 to 3.0 | 100x50 | 2.725m | 45 x 45 x 6 |
| 2.4 | 3.0 or 3.5 | 2.0 to 3.0 | 100x50 | 3.125m | 50 x 50 x 6 |
| 3.0 | 3.0 or 3.5 | 2.0 to 3.0 | 100x50 | 3.925m | 50 x 50 x 6 |
| 3.6 | 3.0 or 3.5 | 2.0 to 3.0 | 100x50 | 4.725m | 65 x 50 x 6 |
Palisade Feature:
1) Palisade fence is widely accepted as the industry leader to protect and deter general attack from all types and conditions of intrusion.
2) The pales are made of hot formed and cold rolled steel belts. These belts offer both strength and rigidity combined with a long life span.
3) It is easy to be installed, moved. And the price is competitive.

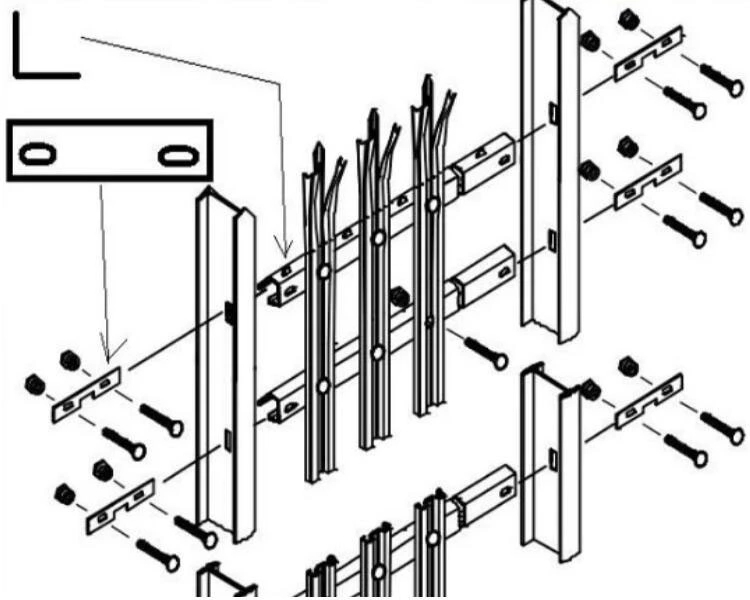

Palisade Details:
a.Pales
| Width | 65-70mm |
| Thickness | 2.0-3.0mm |
| Finishing | galvanized and polyester powder coated or hot dipped galvnaized |
| Head | single point, triple point |
| Height | 1.2m-3.0m |
b.Rail
| Size: | 50x50mm, 40x40mm (Angle Iron) |
| Thickness: | 5.0-6.0mm |
| Finishing: | galvanized and polyester powder coated or hot dipped galvanized |
| Holes: | with 19 holes drilled on one edge side |
| length | 2.7m |
| Screw Size: | M8 |
c.post
| H Post Size: | 100x68mm, 100x55mm, 120x74mm |
| Square Post Size: | 60*60mm, 80*80mm |
| Thickness: | 3.5mm-5.00mm |
| Finishing: | galvanized and polyester powder coated or hot dipped galvanied |
| Head: | cut sharp |
| Height: | on the basis of pale height (1.2-3. |

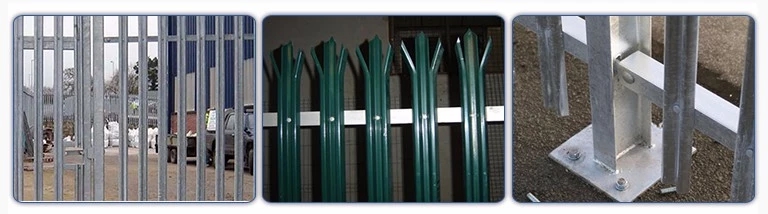

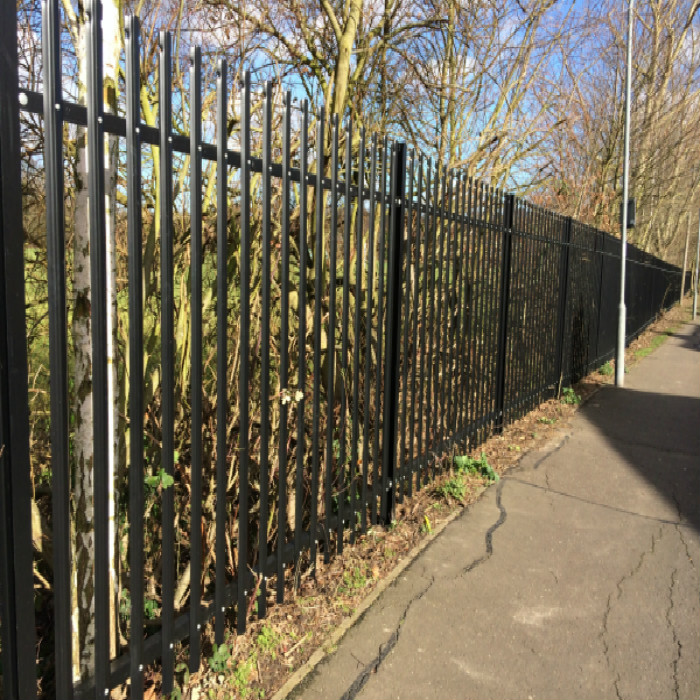

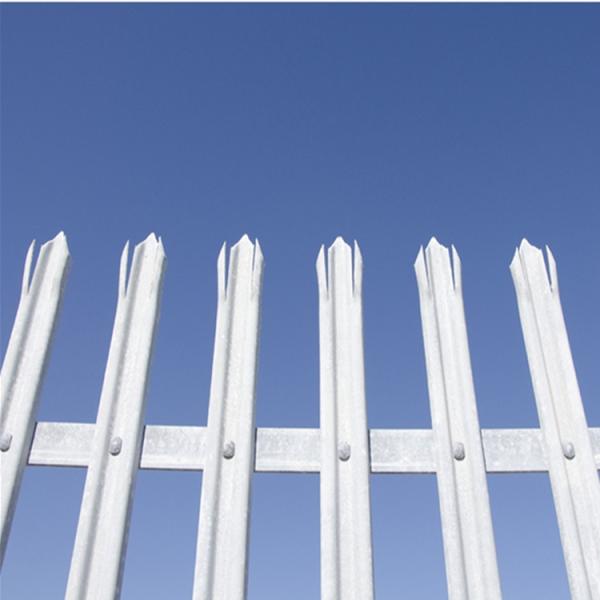

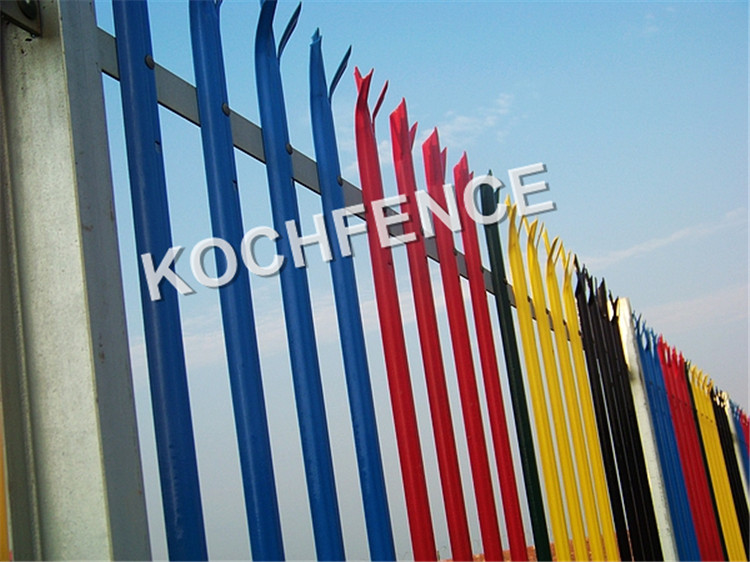

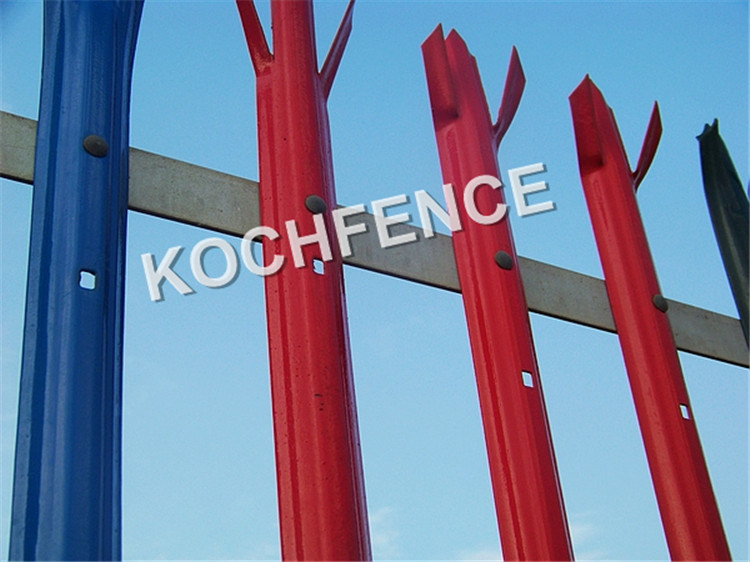

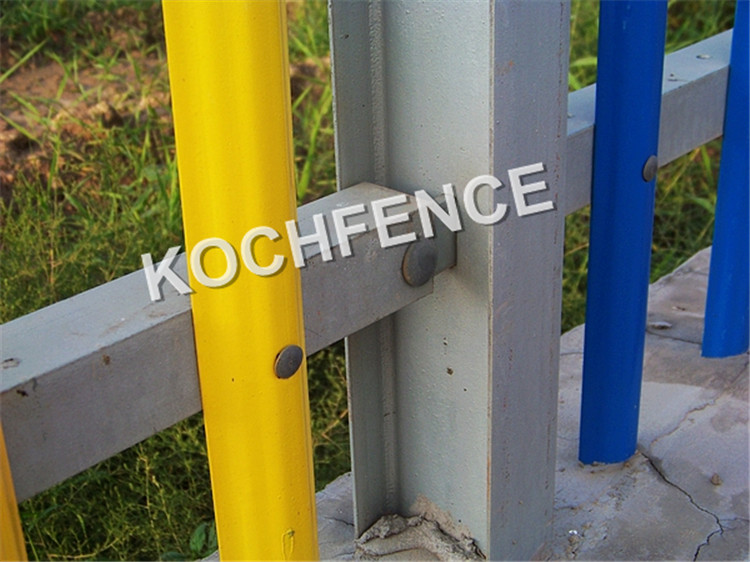

Palisade Display:
Palisade Benefits:
Deter and Delay
The Palisade-EZ system presents an architecturally-pleasing security barrier design that deters potential attacks with pale designs to discourage scaling, and delays intrusion with highstrength steel construction designed to withstand impact.
Fast Installation
Because of its unique rail support, this security fence can be installed in as little as half the time required of conventional systems that are set between posts.
Security Integration
This barrier solution can be integrated with Intrusion Detection and other electronic security components, protecting cabling through a raceway of steel rails within the framework of the Palisade-EZ Fence System.
Long Service Life
High-quality galvanized steel is coated with our exclusive superdurable, Architectural Grade Powder Coating, providing the industry’s longest Lasting protection.
Palisade Packing:
A.Panel: each panel wrapped in plastic film or bubble film, then metal or wooden pallet.
B. Post: each piece wrapped in pearl film or bubble film, then metal or wooden pallet.
C. Accessories: woven bag or carton.
D. We also can pack the goods according to your requirements.
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Choose Us, Give You Better Life!!!
