Aging Resistance Razor Wire Fence With ISO9001 Certification Easily Assembled

Brand Name : KOCHFENCE

Model Number : KF-161

Certification : ISO9001;ISO14001;TUV Certification;CE Certification

Place of Origin : Hebei, China

MOQ : 5 tons

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 tons/ Day

Delivery Time : 5-8 working days

Packaging Details : 1.wrapped by good quality water proof paper,then wrapped by plastic woven bag outside 2.several coils make one bundle,fix by steel strip

Material : Hot Dipped Galvanized Wire and Hot Dipped Galvanized Blade

Zinc coated : Galvanized Wire:8-60g/m2;Blade:40-60g/m2 or as customer's req

Blade type : CBT--65;BTO-22;BTO-28;BTO-30;

Characteristics : Hard and Beautiful and Sharp;Safety protect method

Usage : Protecting Buliding;Grass boundary,Railway,Highway,Army etc

Contact Now

Product Description

CBT-65 & BTO-22 Razor Barbed Wire for Hot Sale in Sharp Quality with ISO9001

Razor Barbed Wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets.

Razor Barbed Wire with beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

Aging Resistance Razor Wire Fence With ISO9001 Certification Easily Assembled

Product Specification

Reference Number Thickness Wire Dia Barb
Length		 Barb
Width		 Barb
spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 25±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 25±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 35±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 36±1
BTO-28 0.5±0.05 2.5 28 15 46±1
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 101±1

Concertina clipped
Coil Diameter No. of Spirals No. of Clips Recommended Stretch
300mm (12") 33 3 4m
450mm (18") 55 3 8-10m
610mm (24") 55 3 10-12m
730mm (30") 55 3 15-20m
730mm (30") 55 5 10-12m
980mm (38.5") 55 5 10-15m
1250mm (50") 55 9 8m
Spiral unclipped
Coil Diameter No. of Spirals No. of Clips Recommended Stretch
300mm (12") 33 - 8-10m
450mm (18") 33 - 12-15m
600mm (24") 33 - 12-15m

Product Material

Electro galvanized core wire and blade
Hot-dipped galvanized core wire and blade
Stainless steel core wire and blade
PVC coated core wire and blade
Or hot-dipped galvanized core wire+stainless steel blade
[ Zinc Coating Class ]
The coating class shall comply with the standard of Zinc EN 10244-2,shall be specified with the order.
Hot-dipped galvanized zinc coating grade:
Grade C: Wire 60-80g/m2 Blade:60-80g/m2
Grade B: Wire 80-120g/m2 Blade:100-150g/m2
Grade A: Wire 160-200g/m2 Blade:230-270g/m2
Different size have different loops , different clips ,
Please confirm which one do you need, so that we can give you reasonable price .

Aging Resistance Razor Wire Fence With ISO9001 Certification Easily Assembled

Product Type

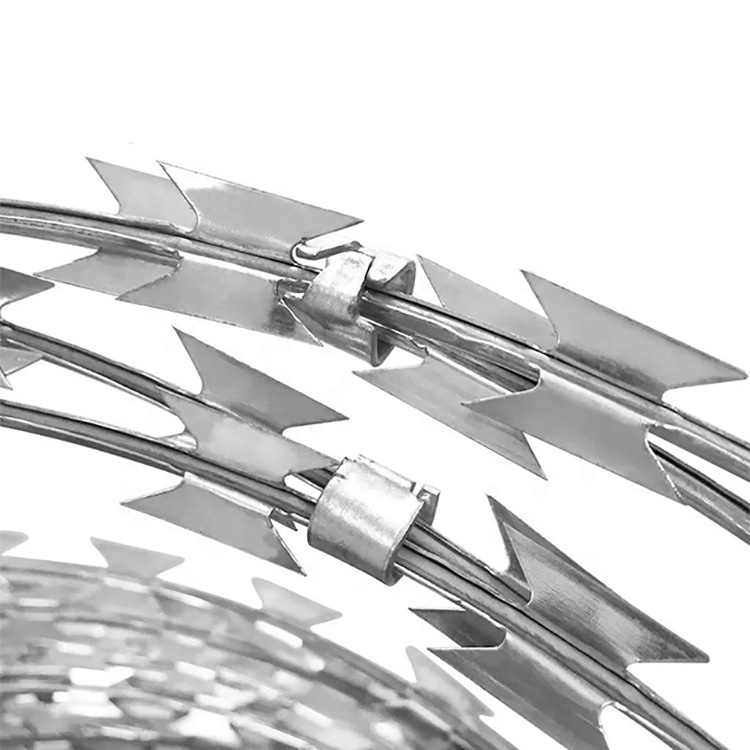

Single Concertina Wire Coil-Razor Blade Type: CBT-60, CBT-65

Aging Resistance Razor Wire Fence With ISO9001 Certification Easily Assembled

Cross Concertina Wire Coil-Razor Blade Type: BTO-10, BTO-12, BTO-22, BTO-30

Aging Resistance Razor Wire Fence With ISO9001 Certification Easily Assembled

Concertina Wire Tape-Razor Blade Type: BTO-10, BTO-12, BTO-22, BTO-30

Aging Resistance Razor Wire Fence With ISO9001 Certification Easily Assembled

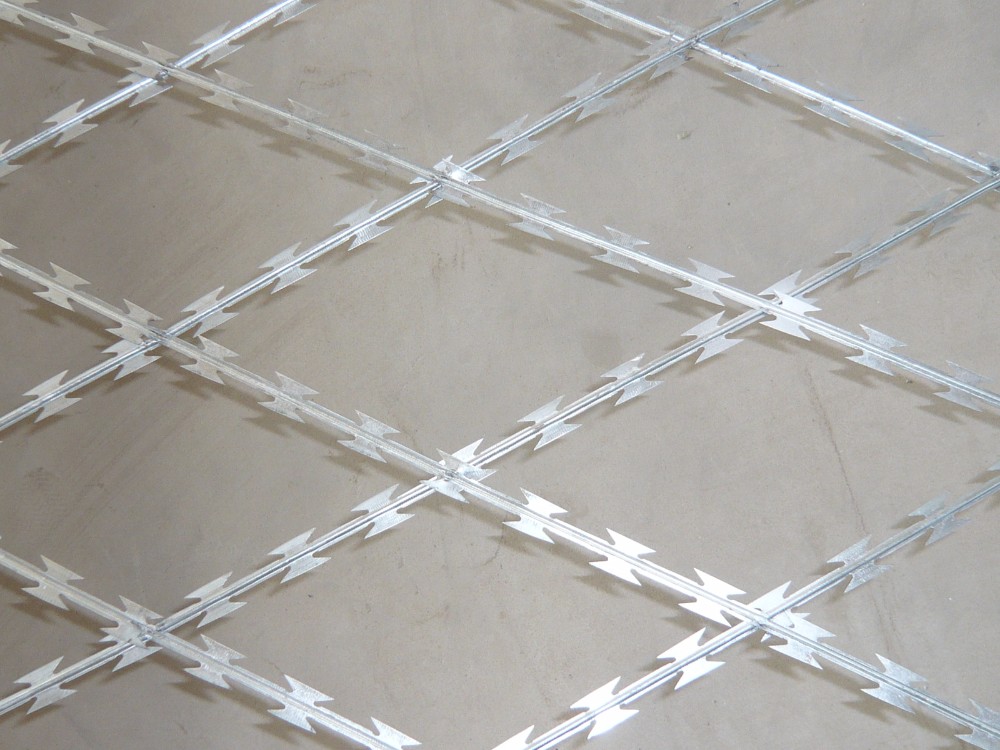

Welded Concertina Wire Fence-Razor Blade Type: BTO-10, BTO-12, BTO-22, BTO-30

Aging Resistance Razor Wire Fence With ISO9001 Certification Easily Assembled

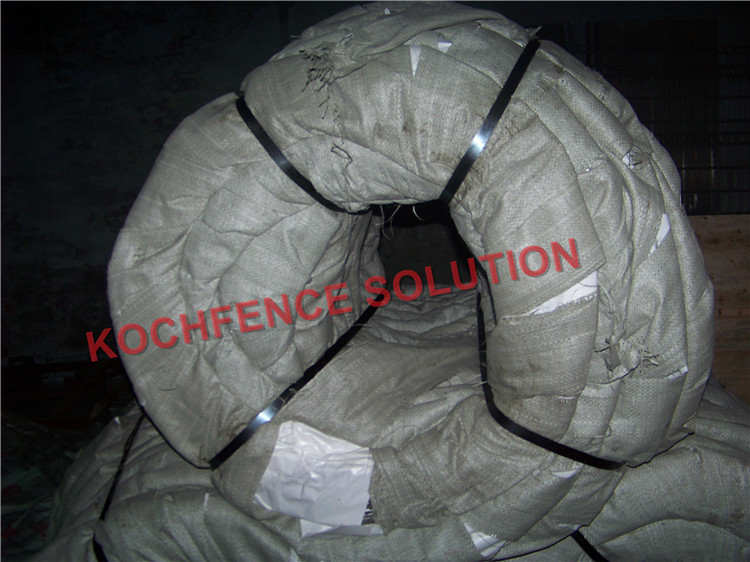

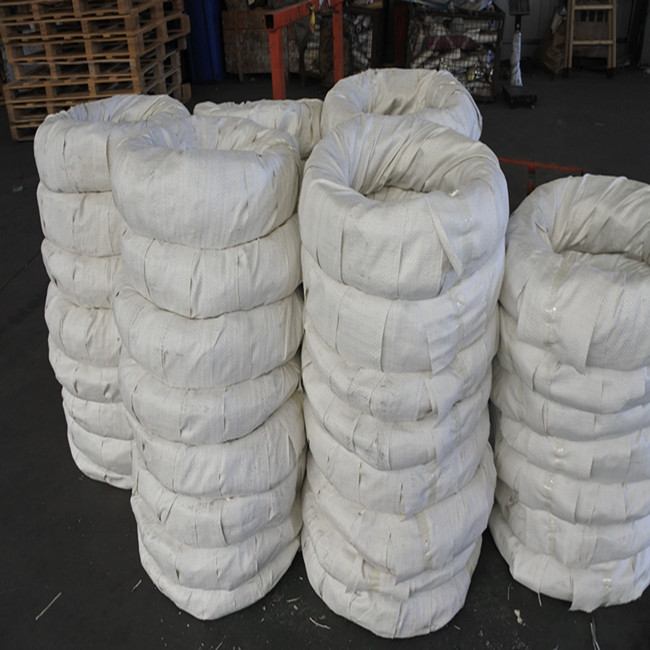

Product Package

1. Compression rolls, 5rolls, 10rolls, or more rolls as one bundle
2. Water-proof paper inside with woven bag outside
3. 1roll, 3rolls or 5rolls in one carton
4. as customer request

Aging Resistance Razor Wire Fence With ISO9001 Certification Easily Assembled

Aging Resistance Razor Wire Fence With ISO9001 Certification Easily Assembled

Our Company

Koch Metal Net Co., Ltd. is a professional manufacturer of Barbed wire fence, 358fence, triangle bending fence,temporary fence, airport fence and so on. It was located in Anping County, Hebei Province, China.The company has advanced welding equipment, strong technical force, scientific process.Our products are widely used in residential areas, airports, railways, municipal construction, factory protection and so on.KOCHFENCE Quality for survival, reputation for development, and plant

in the brand strategy development at the same time, pay attention to new technology, new product development.In the sincere cooperation with customers, customers to do a reliable friend purpose, to provide you with quality service.

Aging Resistance Razor Wire Fence With ISO9001 Certification Easily Assembled

Aging Resistance Razor Wire Fence With ISO9001 Certification Easily Assembled

FAQ

Q1: Are you a factory or trading company?
We are a factory Located in Anping County, Hebei, China.


Q2: How does your factory do regarding quality control?
We have a special QC department in charge of products' quality.


Q3: What's the main market of your company?
Our main market is America, European, Sounth America, Africa,middle east,ect.


Q4: How much production capacity of your company one year?
About 10,000 tons.


Q5: Where is your factory located? How can we visit there?
Our factory is located Hebei province near Shijiazhuang Airport and Beijing Airport. We offer transportation service.
